Thermal Imaging Reports
|
Quick down and dirty, or detailed reporting. The FLIR imaging is
accurate to tenths of a degree, and our imaging reports can show problems
invisible to other diagnostic methods. The following images are samples of
what we can discover.
|
| |
|
|
|
|
 |
|
 |
|
 |

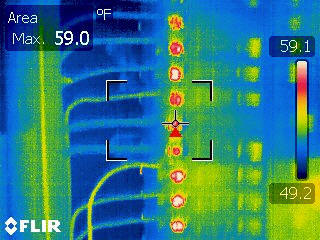

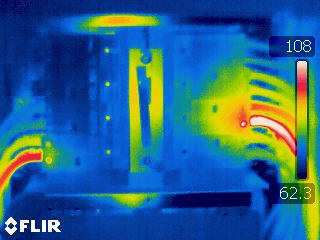

Looks bad, but look at the scale;
49 to 59 degrees F. |
|
Our FLIR 360-series imager. |
|

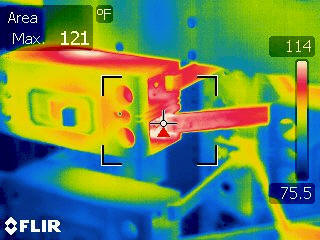

This 3-phase breaker is on,
but not really running too hot. |
 |
|
 |
|
 |

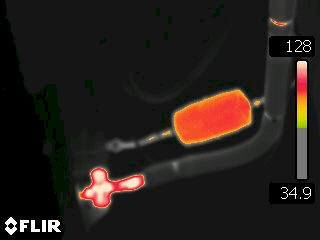

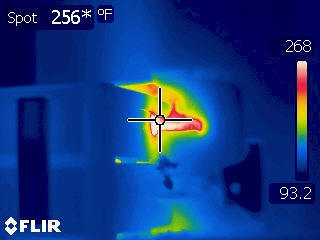

| This device IS hot: 260 degrees |
|
Again, looks bad, but is really fair. |
|

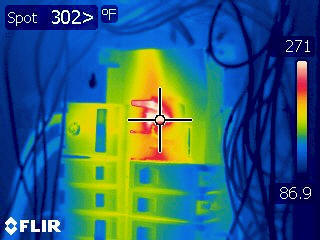

Hot! |
 |
|
 |
|
 |

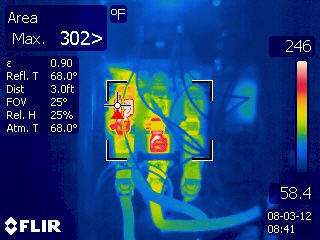

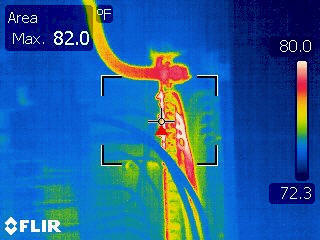

A Main at 300 degrees.
Failure pending. |
|

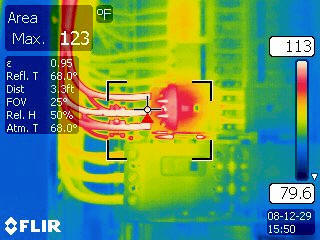

A breaker with issues. |
|
Fuse overloading |
 |
|
 |
|
 |
| Neutral Heating |
|
Regular B/W photography below room
temperature, but set up to display thermal above that. |
|

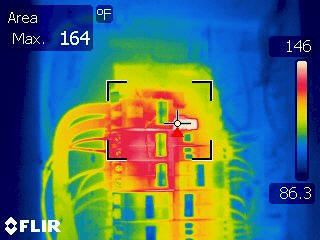

Breaker Heating |
Thermal imaging is

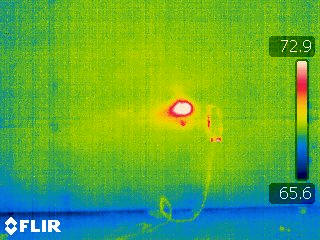

also useful for looking inside walls. The two images to the right show the

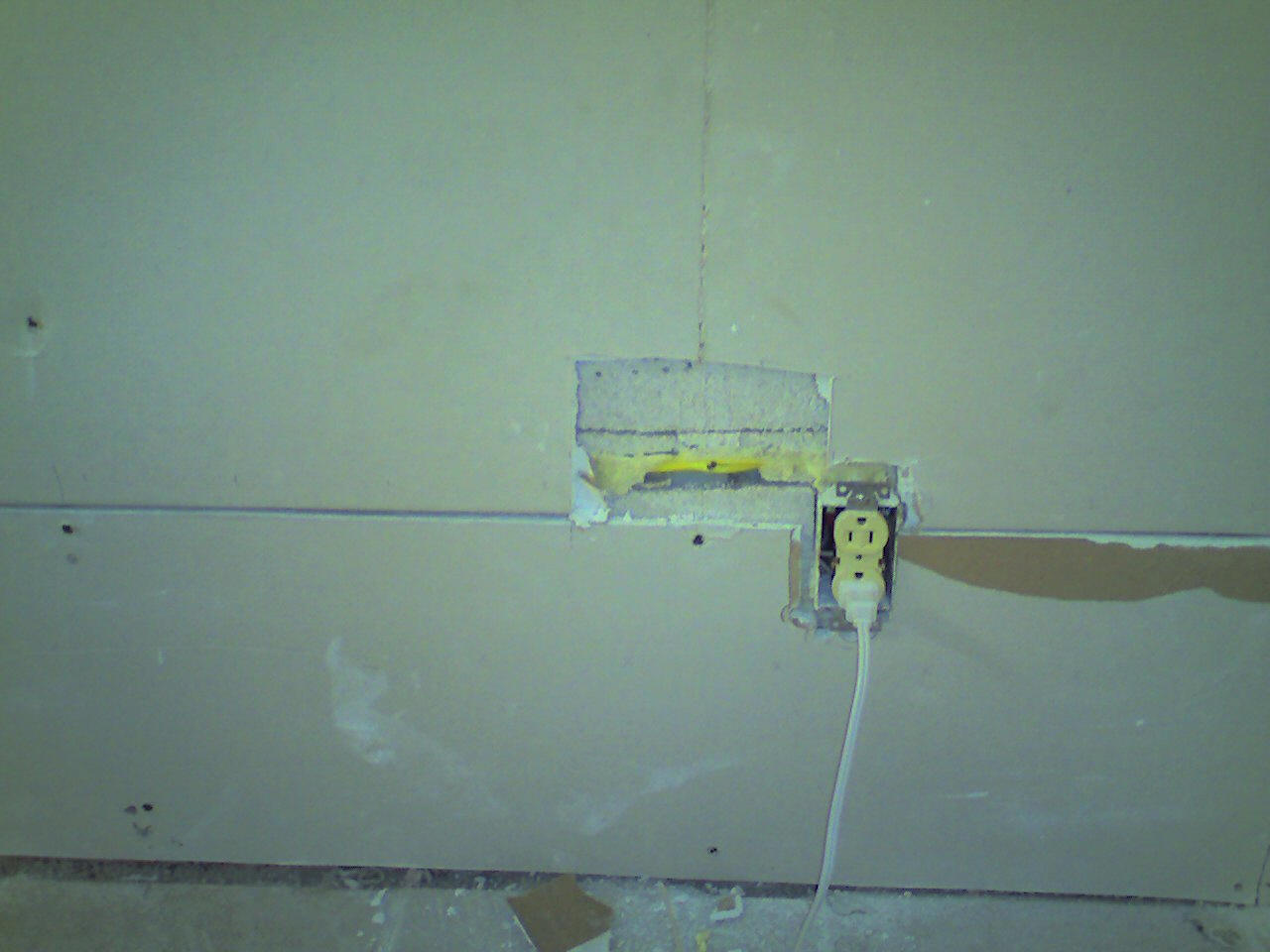

hot-spot inside a new construction wall, and the actual
point of failure- the nail through the romex.
All using a scale of 7.3 degrees difference. |
|
 |
|
 |
| |
|
|
|
|
The 360-series by FLIR (they invented thermal imaging)
is the "Big Brother" of the imaging cameras used on TV's "Ghost Hunters".
|
| |
|
|
|
|
Studs inside a new wall. |
|
Insulation Failure. |
|
My own 100 year-old house. |

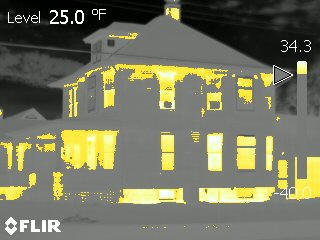

| The same system also works
quite well for residential and commercial heat loss / gain checks. |
